UDMG and USP in HA

UDMG and USP support High Availability (HA) deployments to maximize uptime, ensure resilience, and provide seamless continuity for business-critical environments. By deploying these products together in coordinated HA topologies, organizations can eliminate single points of failure and scale with confidence.

What is High Availability?​

High Availability (HA) is an architectural approach where multiple redundant instances of a system component run in parallel. If one node or connection fails, others continue to provide service without interruption.

Key benefits include:

  • Resilience: Protects against hardware, network, or process failures.
  • Zero downtime: Failover or redistribution occurs seamlessly.
  • Scalability: Traffic and workloads can be balanced across multiple servers.
  • Operational continuity: Maintenance can be performed without service interruption.

HA in the Stonebranch MFT Suite​

The UDMG + USP suite applies HA principles in both layers of the architecture:

  • UDMG: Provides clustering of UDMG Server instances (Cluster Nodes) behind a load balancer, with a shared database as the single source of truth.
  • USP: Provides Active/Active deployments of USP Server instances behind a load balancer (and, if needed, USP Client instances), ensuring secure session break and tunneling without interruption.

By combining these two HA layers, organizations can build an end-to-end secure file transfer architecture that is both fault-tolerant and highly scalable.

info

For detailed setup instructions, see UDMG High Availability and USP High Availability.

Architecture Overview​

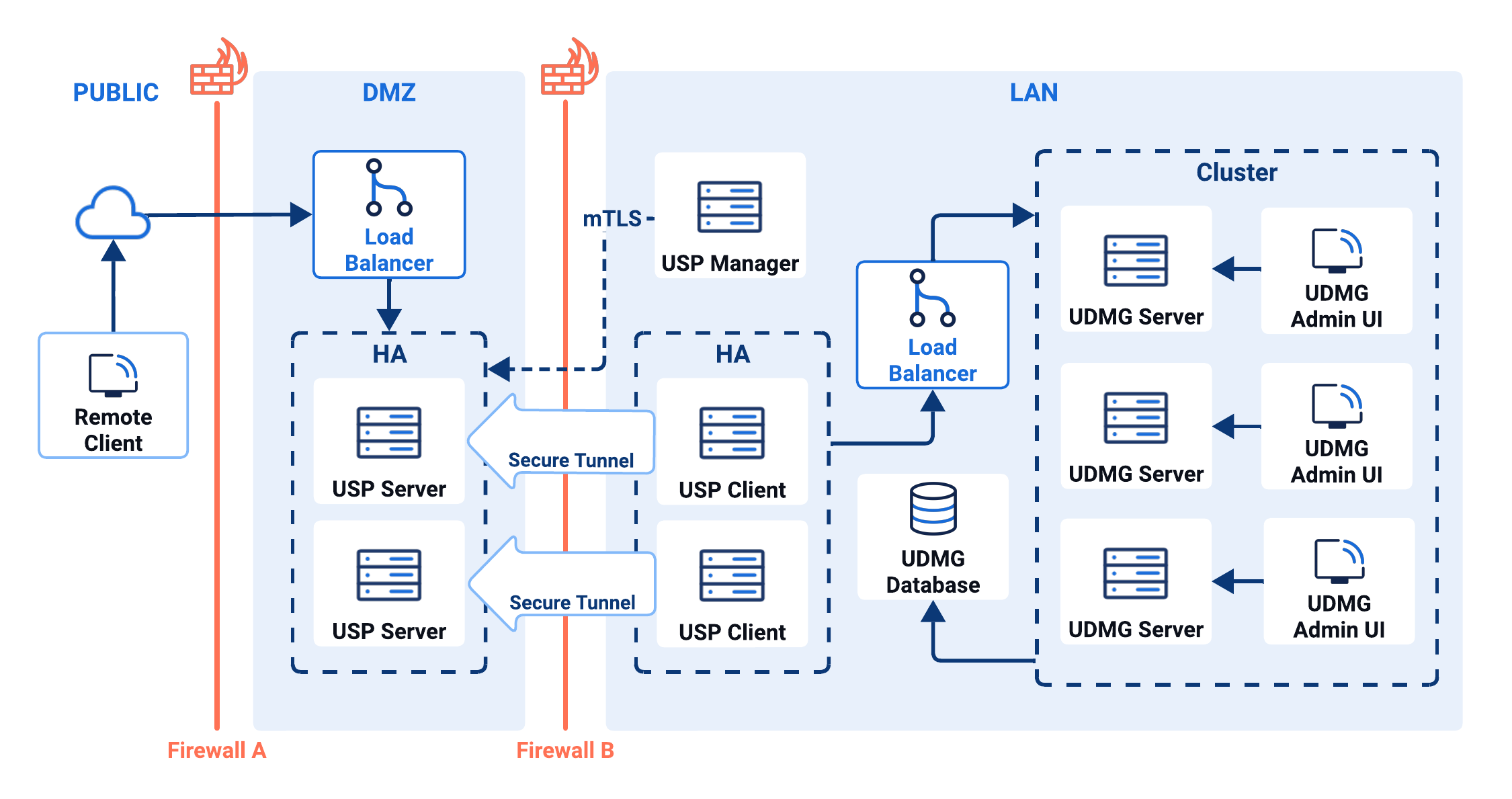

The following diagram illustrates a dual-layer HA deployment with USP Servers in the DMZ, USP Clients (optional) for firewall crossing, and UDMG Cluster Nodes sharing a common database inside the LAN.

High Availability UDMG and USP Architecture

In this topology:

  1. External clients connect through a load balancer to multiple USP Server instances in the DMZ.
  2. USP Servers terminate inbound sessions and route traffic to the internal network.
    • Optionally, USP Clients establish secure tunnels through firewalls when inbound connections are not permitted.
  3. Inside the network, another load balancer distributes traffic across UDMG Server instances (Cluster Nodes).
    • All UDMG Cluster Nodes share a common database, ensuring consistent configuration and state.

This dual-layer HA model guarantees that both secure access (USP) and data movement (UDMG) remain highly available.

tip

For production deployments, use Active/Active (A/A) mode in both USP and UDMG where possible, as it provides the strongest resilience and scalability.
