UDMG as FTP(S) Client (Push Scenario)

The UDMG as FTP(S) Client (Pull Scenario) Pipeline enables UDMG to act as an FTP(S) client, pushing files from the local UDMG filesystem to an external FTP(S) server.

This Pipeline consists of:

• A Local Filesystem Endpoint that represents the location of the files to be transferred (used as the Source Endpoint).
• A Remote FTP(S) Server Endpoint that represents your partner's FTP(S) Server (used as the Destination Endpoint).
• Pipeline-specific configuration options.
• An HTTP request to the Transfer Scheduled API.

Before You Begin

Prerequisites

Before configuring this Pipeline, we recommend you first:

• Obtain your partner's FTP(S) server connection details from their administrator, including hostname, port, and authentication credentials.
• Identify your local source directory and ensure that UDMG has the necessary permissions to read files from it.
• Test network connectivity to your partner's FTP(S) Server and manually verify that authentication succeeds.
• Prepare API integration setup and have a UDMG User with domain-level permissions.

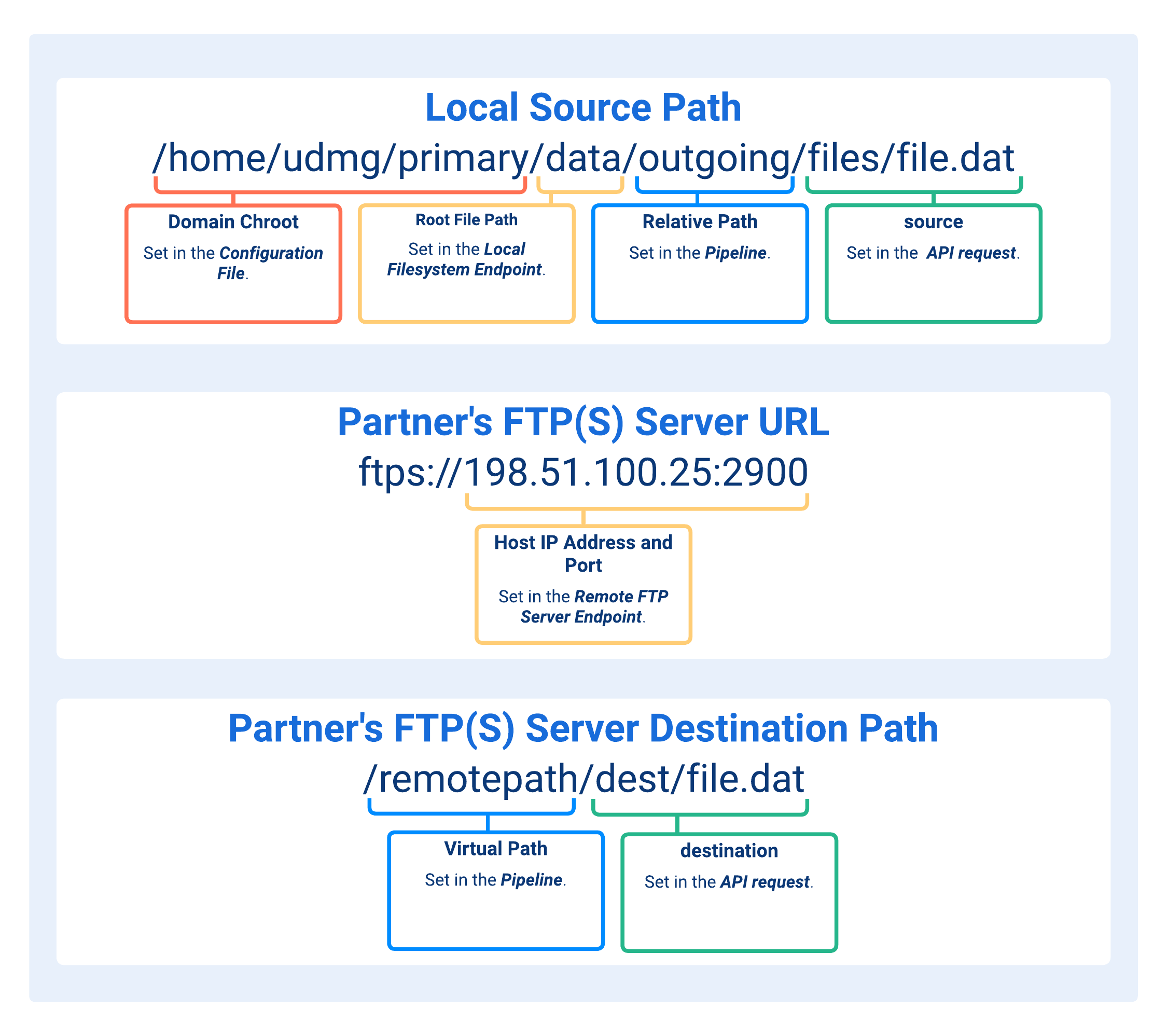

Understanding Paths in FTP(S) Client Pipelines (Push Scenario)

When configuring a UDMG as FTP(S) Client (Push Scenario) Pipeline, several path fields determine where files are read from locally and where they are written to on the external FTP(S) server.

Each path has a specific role and is combined during runtime to build the complete source and destination paths used in transfers.

Domain Chroot

Depends on the domain_chroot argument defined in the Configuration File, which specifies the base path UDMG prepends at runtime. Valid argument values are:

• NONE: No path is added.
• WORKDIR: The file path is resolved relative to the work_directory_path argument defined in the Configuration File.
• WORKDIR+DOMAIN: Same as WORKDIR, but UDMG also prepends the Domain name. For example, if the work_directory_path is /home/udmg/ and the Domain name is primary, the resulting path portion is /home/udmg/primary.

info

• Default value for domain_chroot is WORKDIR+DOMAIN.
• Default value for work_directory_path is /home/udmg/.

Root File Path

Path that establishes the storage hierarchy for all transferred files and provides the critical reference point for enforcing permissions across the file system structure.

It is defined in the Local Filesystem Endpoint used as the Source Endpoint for this Pipeline.

warning

Must point to a directory that exists on the local UDMG host.

Relative Path

The Relative Path completes the directory where the file exists.

Valid formats:

• /
• /[path]
• /[path]/[subdir]/

It is defined in this Pipeline configuration.

warning

Must point to a directory that exists on the local UDMG host.

source

Mandatory filename and extension of the file to be transferred. Optionally, it can include one or more subdirectories within the defined Relative Path.

Valid formats:

• /[filename.ext]
• /[path]/[filename.ext]
• /[path]/[subdir]/[filename.ext]

For implementation details, see Transfer Initialization via Scheduled API.

Host IP Address and Port

The Host IP Address and Port of your partner's FTP(S) Server.

They are defined in the Remote FTP(S) Server Endpoint used as the Destination Endpoint for this Pipeline.

Virtual Path

The path where the file is to be transferred to on the partner's FTP(S) Server (not managed by UDMG).

Valid formats:

• /
• /[path]
• /[path]/[subdir]

warning

The path must exist on your partner's FTP(S) Server.

destination

Specifies an optional path and/or new filename for the destination file:

• If the file should be saved in a subdirectory under the Pipeline's Virtual Path, include that directory path here.
• If you need to rename the file, specify the new name in this field.

Valid formats:

• / or /new_name.dat
• /[path] or /[path]/new_name.dat
• /[path]/[subdir] or /[path]/[subdir]/new_name.dat

External FTP(S) Server Authentication

Pipelines where UDMG acts as a client—more specifically, those that contain a Remote FTP(S) Server Endpoint—require credentials to authenticate with the external FTP(S) server.

Unlike Pipelines, where UDMG acts as the server and relies on Accounts to supply credentials, these Pipelines define credentials directly within the Pipeline configuration.

This design enables each Pipeline to manage its own client authentication credentials independently. As a result, each Pipeline can only authenticate with one external system and use one distinct Credential Type at a time.

Transfer Initialization via Scheduled API

When UDMG is acting as a client, each transfer must be explicitly scheduled and triggered through the Transfers Scheduled API, considering the configuration provided at the Pipeline and Endpoint levels and the HTTP request.

You must first create the Pipeline using the Field Descriptions below, providing Endpoint-specific information.

From there, to initiate a Transfer, you must submit an API request using the API Endpoint with the Pipeline name, the location and name of the file on UDMG to be transferred, and the execution timestamp.

Optionally, you can provide a specific destination path for where the file is to be transferred. Transfers can be executed in real-time or scheduled for a specific future time.

This design enables precise control over file movement and allows each Transfer to be dynamically customized and scheduled.

API Endpoint

Path

POST /api/v1/domains/${UDMG_DOMAIN_NAME}/transfers

Request Body

The request body includes the following fields:

Key	Description	Format	Required
pipeline	Name of the Pipeline.	Exact match to the Pipeline's Name field.	Yes
when	Date and time of when to execute the file transfer. If a date in the past is provided, then the Transfer is initiated after the next system pending transfer check (transfer.checkInterval parameter is defaulted to every minute).	Must be in RFC3339 format ("2025-01-01T00:00:00Z").	Yes
source	The exact path where the file to be transferred exists on UDMG locally. The parameter is appended to the Pipeline's associated Root Path and Relative Path to create a full path. The full path is work_directory_path + Root Path + Relative Path + source parameter. If the file is located in a subdirectory, then add it to the parameter.	Format: /[subdir]/[filename.ext] or /[file name.txt]	Yes
destination	The path where the file is to be transferred to on the external FTP(S) server. The parameter is appended to the Pipeline's Virtual Path to create a full path. The full path is Virtual Path + destination parameter. If the file needs to be added to a subdirectory, then it should be added to the parameter. The file name needs to be changed, then it should be changed with the parameter.	Format: /[subdir]/[filename.ext] or /[same or new file name.txt]	No

Example: Full Configuration and Path

	UDMG Global	Source Endpoint Path 1	Source Endpoint Path 2	Pipeline Path 1	Pipeline Path 2	Pipeline Scheduler API Parameter 1	Pipeline Scheduler API Parameter 2
API Parameter	workingDirectoryPath	path	tmp	relative	virtual	source	destination
GUI Field	-	Root Path	Temporary Path	Relative Path	Virtual Path	-	-
Example	home/udmg	/data	-	/August	/Taxes	/Form1000.dat	/Received/Form1000.dat

• Resulting Source Path (full): /home/udmg/data/August/Form1000.dat

• Resulting Destination Path (full): /Taxes/Received/Form1000.dat

Example: Schedule a File Transfer via API

Use the following curl command to schedule a file transfer through the Transfers Scheduled API:

curl http://<UDMG_HOST>/api/v1/domains/${UDMG_DOMAIN_NAME}/transfers \
 -X POST \
 -H "Content-Type: application/json" \
 -d '{
   "pipeline": "Pipeline_Supplier",
   "when": "2025-07-03T15:43:52.344Z",
   "source": "/Form1000.dat",
   "destination": "/Received/Form1000.dat"
 }'

Example: Response (Transfer Scheduled)

Use the following curl command to view the list of scheduled transfers.

  curl http://<UDMG_HOST>/api/v1/domains/${UDMG_DOMAIN_NAME}/transfers/scheduled
   -X GET \
   -H "Content-Type: application/json" \

{
  "id": 1,
  "pipeline": "Pipeline_Supplier",
  "username": "robi",
  "source": "/data/August/Form1000.dat",
  "destination": "/Taxes/Received/Form1000.dat",
  "schedule": "2025-07-03T15:43:52.344Z",
  "status": "Completed",
  "executedAt": "2025-08-22T20:44:02Z",
  "completedAt": "2025-08-22T20:44:02Z"
}

Adding a Pipeline

To add a UDMG as FTP(S) Client (Push Scenario) Pipeline, follow these steps:

1. From the Sidebar, select Configuration > Pipelines.
2. Click Add Pipeline.
3. Complete the Name for the new Pipeline.
4. Select the Source Endpoint with a Local Filesystem Endpoint type.
5. Select the Destination Endpoint with a Remote FTP(S) Server Endpoint type.
6. Fill out the dynamic fields following the Field Descriptions table.
7. Click Add.

warning

UDMG does not allow for the creation of identical Pipelines (even with unique names). The Pipeline must pass the Source Endpoint + Destination Endpoint + Permissions + Virtual Path uniqueness check. See Pipelines for more information on Pipeline validation checks.

Field Descriptions

Name	Description	Specifications	Required
Name	Name of the Pipeline.	Must be unique. Must follow the Standard Naming Pattern. Cannot be modified after creation.	Yes
Description	Description for the Pipeline.		No
Source Endpoint	The Source Endpoint is where files are retrieved, originated, or come from. Select Local Filesystem from the dropdown menu.	Must reference an already created Local Filesystem Endpoint. Cannot be modified after creation.	Yes
Destination Endpoint	The Destination Endpoint is where files are delivered to or sent. Select Remote FTP(S) Server from the dropdown menu.	Must reference an already created Remote FTP(S) Server Endpoint. Cannot be modified after creation.	Yes
Relative Path	The exact path where the file to be transferred exists on UDMG locally. The path is used to create a full path. The full path is work_directory_path + Root Path + Relative Path + source parameter.	Format: /, /[path], or /[path]/[subdir]. The subdirectory and file name should not be included here if they are added within the source parameter.	Yes
Virtual Path	The path or "Remote Server Path" where the file is to be transferred to on the external FTP(S) server. The path must exist on the external remote FTP(S) server.	Format: /, /[path], or /[path]/[subdir]. The subdirectory and file name should not be included here if they are added within the destination parameter.	Yes
Credentials Name	The client authentication Credentials used to authenticate to the external FTP(S) server.	Must reference an already created Credential of type Username and Password, Username and Key, or Username, Password, and Key.	Yes
Universal Event	While this field is currently in the form, it's not used in the remote transfer configuration.		No

Editing a Pipeline

To edit a UDMG as FTP(S) Client (Push Scenario) Pipeline, follow these steps:

1. From the Sidebar, select Configuration > Pipelines.
2. Click the Name of the Pipeline you want to edit.
3. Click the Edit button above the Pipeline details.
4. Edit details for the Pipeline.
   • The Source Endpoint and Destination Endpoint cannot be changed after creation.
5. Click Update.

warning

Upon Pipeline update, UDMG checks for Endpoint Source + Endpoint Destination + Configuration + Virtual Path uniqueness.

Managing a Pipeline

All Pipelines support the ability to view the complete Pipeline and linked Endpoint details.

Viewing Pipeline Details

To view the details of a UDMG as FTP(S) Client (Push Scenario) Pipeline, follow these steps:

1. From the Sidebar, select Configuration > Pipelines.
2. Click the Name of the Pipeline you want to view.
3. Click the Overview Tab or Details Tab to see additional Pipeline and Endpoint details.

Pipeline Metadata

Pipeline details include all parameters given in the Field Descriptions table, plus the following read-only metadata:

Name	Description
UUID	Universally Unique Identifier of this Pipeline.
Version	Version number of the configuration. Every change increases the number.
Enabled	Pipeline's Enabled status. If enabled, field is set to True.
Created	Date and time this Pipeline was created.
Updated	Date and time this Pipeline was last updated.

Enabling and Disabling Pipelines

Pipelines can be Enabled or Disabled to control their active status and ability to participate in file transfers. The status is defaulted to Enabled and can be changed after creation. The Configuration Item's Disabled status does not impact whether it can be configured. Also, Disabled Endpoints can be added to a Pipeline.

• Enabled (default): The Pipeline is active and allows file transfers.
• Disabled: The Pipeline is inactive and does not allow file transfers.

To enable or disable a Pipeline, follow these steps:

1. From the Sidebar, select Configuration > Pipelines.
2. Click the Name of the Pipeline you want to enable or disable.
3. Click the Enable or Disable button above the Pipeline details.
4. If the Pipeline is Disabled, then the button displays Enabled. If the Pipeline is Enabled, then the button displays Disabled.
5. Click Update.

info

Changes to a Pipeline's Enabled/Disabled status take effect the next time the Transfers Scheduled API is triggered. Disabling a Pipeline is a safe alternative to deleting it.

Deleting a Pipeline

To delete a UDMG as FTP(S) Client (Push Scenario) Pipeline, follow these steps:

1. From the Sidebar, select Configuration > Pipelines.
2. Click the Name of the Pipeline you want to delete.
3. Click the Delete button above the Pipeline details.
4. You will be asked to confirm the deletion. Click Delete.

Monitoring a Pipeline

To monitor and determine the status of a Pipeline, the Transfers page and Endpoints page must be monitored to track incoming Transfers and the Source and Destination Endpoints' individual statuses, respectively.

On the Transfers page, the following fields indicate the type of Remote Transfer.

• Is Schedule: If Yes, then the Transfer was a Remote Transfer.
• Is Send: If Yes, then the Remote Transfer was a push scenario.
