AS2 Protocol

AS2 (Applicability Statement 2) is a widely adopted protocol for secure business-to-business (B2B) file exchange over HTTP or HTTPS. It supports encrypted, signed, and acknowledged transmission of EDI, XML, and flat files, ensuring confidentiality, integrity, and proof of delivery.

AS2 is a strictly one-way protocol—it sends data from one party to another and does not support retrieval. Each message is a push transaction, followed by an acknowledgment (MDN) sent either in the same HTTPS session or asynchronously at a later time. This design enhances auditability and reliability, making AS2 a standard in industries like retail, logistics, and supply chain operations where verifiable file delivery is critical.

UDMG AS2 Implementation​

UDMG Server support AS2 communications in both directions:

  • UDMG as an AS2 Server (or Receiver), to receive files from your partners.
  • UDMG as an AS2 Client (or Sender), to send files to your partners' AS2 servers.

This flexibility allows UDMG to integrate with partners regardless of whether they need to send or receive files.

UDMG as AS2 Server​

This configuration involves a UDMG as AS2 Server Pipeline.

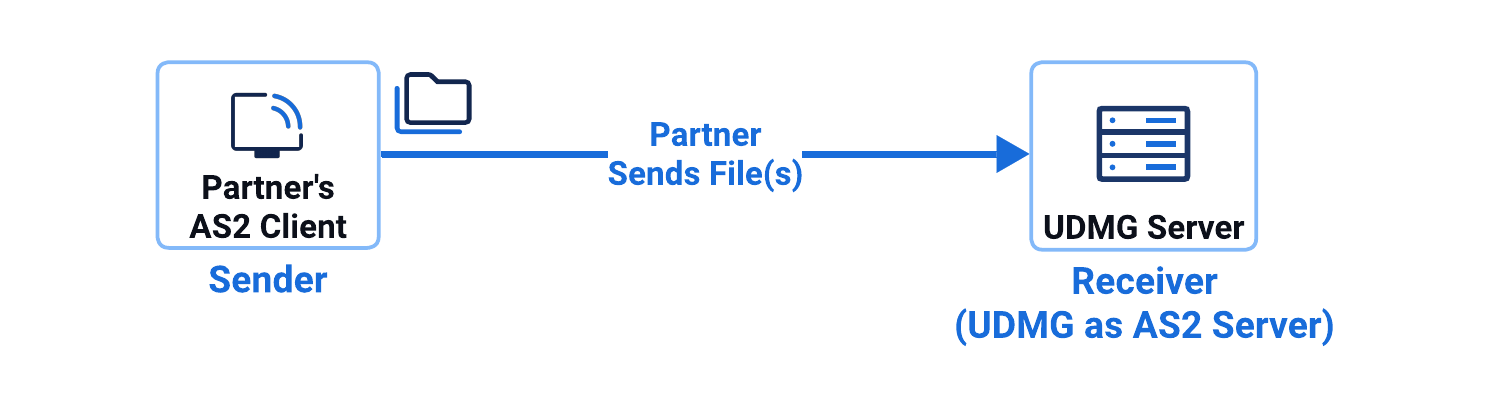

UDMG as AS2 Server Diagram

In this configuration:

  1. UDMG locally hosts a partner-specific Local AS2 Server Endpoint.
  2. Your partner uses an AS2 client to connect and authenticate to the Local AS2 Server Endpoint.
  3. UDMG receives signed and encrypted files from the external AS2 client.
  4. Files are decrypted, validated, and saved to a filesystem (defined in the Local Filesystem Endpoint).
  5. UDMG generates and returns a Message Disposition Notification (MDN) to confirm receipt.

UDMG as AS2 Client​

This configuration involves a UDMG as AS2 Client Pipeline.

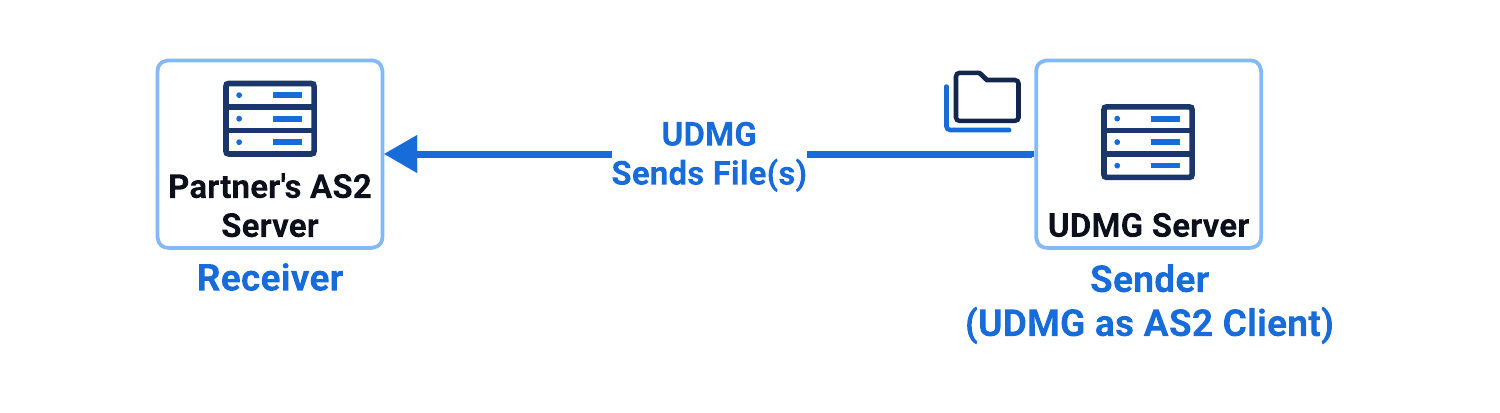

UDMG as AS2 Client Diagram

In this configuration:

  1. UDMG has access to a filesystem (defined in a Local Filesystem Endpoint).
  2. A UDMG Admin or automated process initiates an AS2 transfer through the Transfers Scheduled API. Files are compressed (if configured), signed, and encrypted before transmission.
  3. UDMG sends the file to your partner's AS2 Server.
  4. The partner's AS2 Server acknowledges receipt by returning an MDN (synchronously or asynchronously).
  5. UDMG validates the MDN and logs the transfer result in the Transfers Dashboard page.
