XD Connector Deployment

Deployment of the Universal Command Agent for SOA: XD Connector in a production environment includes host and distributed servers.

Host Server​

The host server is where the Universal Command Manager is installed.

Distributed Server​

There are two distributed servers in this environment:

  1. Agent
    Server where the Universal Broker / Server and Universal Command Agent for SOA are installed and runs.
  2. WebSphere Application Server
    Server where WebSphere Network Deployment v6.1 and WebSphere Extended Deployment (XD) components are installed and runs any operating system that WebSphere supports.

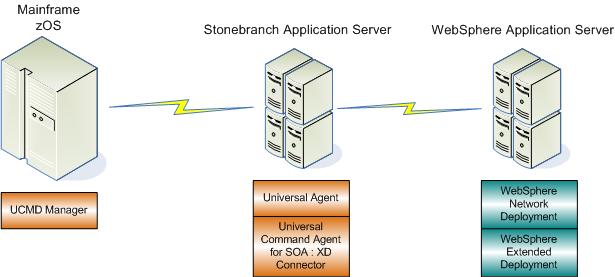

Illustrated Environment​

The following figure illustrates this environment.
