AWS Batch

Disclaimer

Your use of this download is governed by Stonebranch's Terms of Use.

Version Information

Template Name	Extension Name	Version	Status
AWS Batch	ue-aws-batch	2.0.0	Fixes and new Features are introduced.

warning

2.0.0 is a major release and introduces breaking changes that might affect some customers depending on their setup. Administrators are strongly advised to refer to Changelog for more information on the changes introduced in this release.

Refer to Changelog for version history information.

Overview

AWS Batch is a set of batch management capabilities that enables developers, scientists, and engineers to easily and efficiently run hundreds of thousands of batch computing jobs on AWS.

This Universal Task allows customers to submit and monitor AWS Batch Jobs straight from the Universal Controller.

Key Features

Feature	Description
Job Submission	Submit a new AWS Batch Job, with an optional timeout after which Batch terminates the job.
Job Completion Monitoring	Wait for a submitted job to reach a terminal "SUCCEEDED" or "FAILED" state before completing the task.
Job Status Lookup	Read the current status of an existing Batch Job by Job ID.
IAM Role-Based Access	Authenticate using IAM Role-Based Access Control (RBAC) instead of static AWS credentials.
Proxy Support	Route communication with AWS through an HTTP or HTTPS proxy.

Requirements

This integration requires a Universal Agent and a Python runtime to execute the Universal Task.

Area	Details
Python Version	Requires Python 3.11, tested with Agent bundled python distribution.
Universal Agent Compatibility	Compatible with Universal Agent for Windows x64 and version >= 7.7.0.0. Compatible with Universal Agent for Linux and version >= 7.7.0.0.
Universal Controller Compatibility	Universal Controller Version >= 7.7.0.0.
Network and Connectivity	Network connectivity to AWS Batch REST endpoints is required, through the configured VPC. More information on setting up an AWS Batch VPC can be found in the AWS Batch official user guide.

Supported Actions

There are 2 Top-Level actions controlled by the Action Field:

• Submit Job: Submits a new AWS Batch Job, optionally terminating it after a configured timeout, and optionally waiting until the job reaches a terminal "SUCCEEDED" or "FAILED" state.
• Read Job Status: Reads the current status of an existing Batch Job by Job ID.

Action Output

EXTENSION

The extension output provides the following information:

• exit_code, status_description: General info regarding the task execution.
• invocation.fields: The task configuration used for this execution.
• result.out_job_id: ID of the Batch Job. Present for the Submit Job action.
• result.out_job_arn: Amazon Resource Name (ARN) of the Batch Job. Present for the Submit Job action.
• result.out_job_name: Name of the Batch Job. Present for the Read Job Status action, and for Submit Job when Wait for Success or Failure is checked.
• result.out_job_status: Status of the Batch Job. Present for the Read Job Status action, and for Submit Job when Wait for Success or Failure is checked.
• result.job_info: Full job information as returned by AWS Batch. Present when Show Full Job information on Extension Output is checked.
• result.errors: List of errors that occurred during execution.

Examples:

Successful execution

{
  "exit_code": 0,
  "status_description": "SUCCESS: AWS Batch Task submitted successfully",
  "changed": true,
  "invocation": {
    "extension": "ue-aws-batch",
    "version": "2.0.0",
    "fields": {
      "action": "Submit Job",
      "credentials": {
        "user": "AKIAIOSFODNN7EXAMPLE",
        "password": "****",
        "token": "",
        "key_location": "",
        "passphrase": ""
      },
      "region": "us-east-1",
      "role_based_access": false,
      "role_arn": null,
      "job_name": "nightly-report-job",
      "job_definition": "nightly-report-job-def",
      "job_queue": "batch-standard-queue",
      "job_timeout": 3600,
      "additional_job_parameters": [
        {
          "reportDate": "2026-07-28"
        }
      ],
      "job_id": null,
      "use_proxy": false,
      "proxy_type": null,
      "proxy": null,
      "proxy_credentials": null,
      "proxy_ca_bundle_file": null,
      "container_overrides_script": null,
      "wait_for_success_or_failure": true,
      "polling_interval": 15,
      "full_job_info": false
    }
  },
  "result": {
    "out_job_name": "nightly-report-job",
    "out_job_status": "SUCCEEDED",
    "out_job_id": "1111-2222-3333-4444-555555555555",
    "out_job_arn": "arn:aws:batch:us-east-1:123456789012:job/1111-2222-3333-4444-555555555555",
    "job_info": null
  }
}

Failed execution

{
  "exit_code": 20,
  "status_description": "Data Validation Error: Missing required fields: job_queue.",
  "invocation": {
    "extension": "ue-aws-batch",
    "version": "2.0.0",
    "fields": {
      "action": "Submit Job",
      "credentials": {
        "user": "AKIAIOSFODNN7EXAMPLE",
        "password": "****",
        "token": "",
        "key_location": "",
        "passphrase": ""
      },
      "region": "us-east-1",
      "role_based_access": false,
      "role_arn": null,
      "job_name": "nightly-report-job",
      "job_definition": "nightly-report-job-def",
      "job_queue": null,
      "job_timeout": null,
      "additional_job_parameters": [],
      "job_id": null,
      "use_proxy": false,
      "proxy_type": null,
      "proxy": null,
      "proxy_credentials": null,
      "proxy_ca_bundle_file": null,
      "container_overrides_script": null,
      "wait_for_success_or_failure": false,
      "polling_interval": null,
      "full_job_info": false
    }
  },
  "result": {
    "errors": ["Data Validation Error: Missing required fields: job_queue."]
  }
}

STDOUT

This integration does not produce any STDOUT output.

Configuration Examples

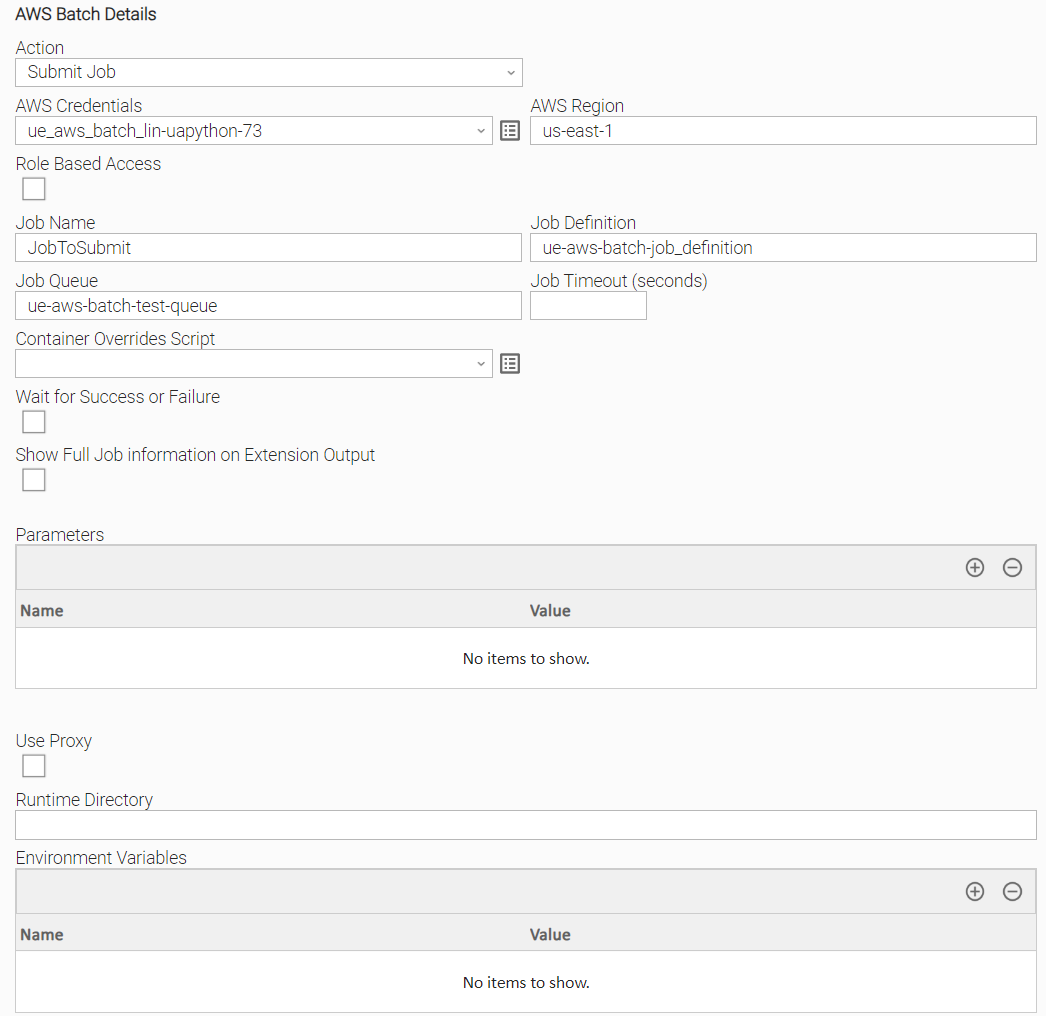

Example: Submit Job, basic configuration

Example of AWS Batch Universal Task for submitting a new AWS Batch Job.

Example: Submit Job, environment variable credentials, wait for completion, HTTPS proxy with credentials

Example of AWS Batch Universal Task for submitting a new AWS Batch Job with AWS Region provided as an Environment Variable and AWS Credentials left empty in the task definition, so credentials are resolved from the task execution environment. The task also sets Job Timeout, Container Overrides Script, Wait for Success or Failure, and Proxy Type "HTTPS With Credentials".

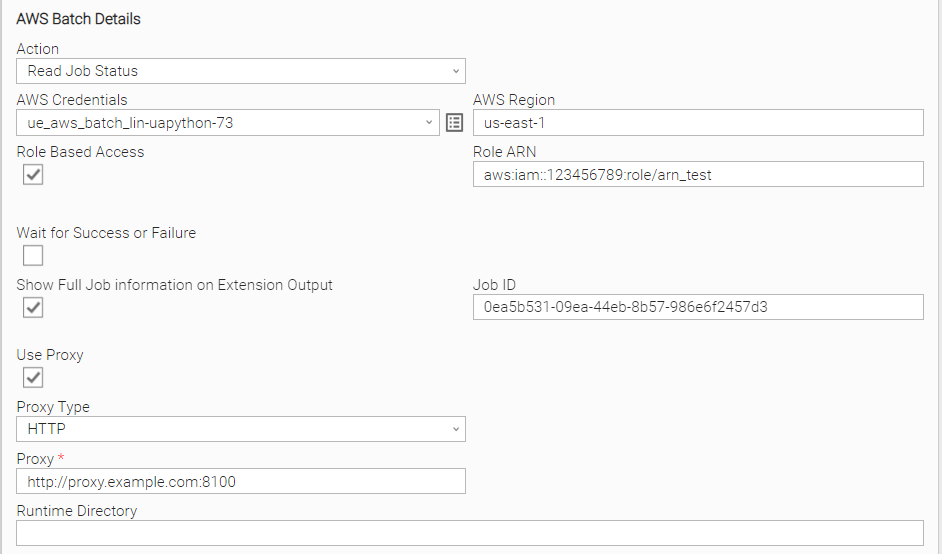

Example: Read Job Status, Role Based Access, HTTP proxy

Example of AWS Batch Universal Task for reading the status of an existing Batch Job by ID, using Role Based Access and an HTTP proxy connection.

Input Fields

Name	Type	Description	Version Information
Action	Choice	The action performed upon the task execution. Available options: "Submit Job" (default) "Read Job Status"	Introduced in 1.0.0
AWS Credentials	Credential	AWS access key ID and AWS secret access key, provided as AWS Access Key ID as Runtime User and AWS Secret Access Key as Runtime Password. When not populated, credentials are resolved from the task execution environment. Refer to boto3 credentials configuration for more information.	Introduced in 1.0.0 Modified in 1.1.0
AWS Region	Text	Region for the Amazon Web Service, for example us-east-1. When not populated, region is resolved from the task execution environment. Refer to boto3 configuration options for more information.	Introduced in 1.0.0 Modified in 1.1.0
Role Based Access	Checkbox	Check to authenticate using IAM Role-Based Access Control (RBAC), where temporary, limited-time credentials are assumed for the specified role instead of static AWS credentials. Defaults to unchecked.	Introduced in 1.0.0
Role ARN	Text	Amazon Resource Name (ARN) of the role to assume, in the format arn:aws:iam::<AWS Account ID>:instance-profile/<Role name>. This field is required when Role Based Access is checked.	Introduced in 1.0.0
Job Name	Text	The name of the Batch Job to submit. This field is visible when Action is "Submit Job".	Introduced in 1.0.0
Job Definition	Text	The job definition used for the job, specified as a name, name:revision, or the Amazon Resource Name (ARN) of the job definition. When a name is specified without a revision, the latest active revision is used. This field is required when Action is "Submit Job".	Introduced in 1.0.0
Job Queue	Text	The job queue where the job is submitted, specified as a name or Amazon Resource Name (ARN) of the queue. This field is required when Action is "Submit Job".	Introduced in 1.0.0
Job Timeout (seconds)	Integer	The timeout, after which Batch terminates the job if it has not finished; a job terminated for timeout is not retried. This configuration overrides any timeout configured on the job definition. Minimum value is 60 seconds. Optional when Action is "Submit Job".	Introduced in 1.0.0
Container Overrides Script	Script	The container overrides to apply to the submitted job, provided as a JSON payload. This field is visible when Action is "Submit Job".	Introduced in 1.1.0
Wait for Success or Failure	Checkbox	Check to keep the task running until the submitted job reaches the "SUCCEEDED" or "FAILED" state. Defaults to unchecked. This field is visible when Action is "Submit Job".	Introduced in 1.2.0
Polling Interval	Integer	The interval, in seconds, between checks of the Job Status while waiting for completion. Defaults to 30. This field is required when Wait for Success or Failure is checked.	Introduced in 1.2.0
Show Full Job information on Extension Output	Checkbox	Check to include the latest full job information returned by AWS Batch in the Extension Output. Defaults to unchecked.	Introduced in 1.3.0
Parameters	Array	Parameters passed to the job that override the parameter substitution placeholders set in the job definition, specified as key/value pairs. Optional when Action is "Submit Job".	Introduced in 1.0.0
Job ID	Text	The Job ID of an already submitted Batch Job. This field is required when Action is "Read Job Status".	Introduced in 1.0.0
Use Proxy	Checkbox	Check to route communication with AWS through a proxy. Defaults to unchecked.	Introduced in 1.0.0
Proxy Type	Choice	Type of proxy connection to use. Available options: "HTTP" (default) "HTTPS" "HTTPS With Credentials"	Introduced in 1.0.0 Modified in 2.0.0
Proxy CA Bundle File	Text	The path to a custom certificate bundle used when establishing SSL/TLS connections with the proxy. This field is visible when Use Proxy is checked.	Introduced in 1.0.0 Modified in 2.0.0
Proxy	Text	Proxy server and port, for example https://proxyip:port. This field is required when Use Proxy is checked.	Introduced in 1.0.0
Proxy Credentials	Credential	Credentials used for the proxy connection. This field is required when Use Proxy is checked.	Introduced in 1.0.0 Modified in 2.0.0

Output Fields

The following output-only fields provide better visibility during the execution of Universal Task Instances.

Name	Type	Description	Version Information
Job ARN	Text	Amazon Resource Name (ARN) of the submitted Batch Job. Generated by the Submit Job action.	Introduced in 1.0.0
Job Name	Text	Name of the Batch Job. Generated by the Read Job Status action, and by Submit Job when Wait for Success or Failure is checked, updating live during execution.	Introduced in 1.0.0 Modified in 1.2.0
Job ID	Text	ID of the submitted Batch Job. Generated by the Submit Job action.	Introduced in 1.0.0
Job Status	Text	Status of the Batch Job. Generated by the Read Job Status action, and by Submit Job when Wait for Success or Failure is checked, updating live during execution.	Introduced in 1.0.0 Modified in 1.2.0

Cancellation and Rerun

• In case of cancellation, there is no extension-specific cancellation logic; the submitted AWS Batch job continues running independently of the Universal Task Instance.
• In case of rerun, a new Batch Job is submitted; the previous job is not affected.

Exit Codes

Exit Code	Status	Description
0	Success	Successful Execution.
1	Failure	Generic error. Also returned when Action is "Read Job Status" and the Job Status is "FAILED", or when Action is "Submit Job" with Wait for Success or Failure checked and the submitted job reaches AWS Batch status "FAILED".
2	Failure	Authentication error. The provided credentials are invalid or insufficient.
3	Failure	Authorization error. The account is not authorized to perform the requested action.
10	Failure	Connection error. The connection data is invalid or the connection timed out.
11	Failure	Connection error connecting to the configured proxy.
20	Failure	Input fields validation error.
22	Success	The Job Status is "RUNNING". Valid only for Action "Read Job Status".
23	Success	The Job Status is "STARTING". Valid only for Action "Read Job Status".
24	Success	The Job Status is "RUNNABLE". Valid only for Action "Read Job Status".
25	Success	The Job Status is "PENDING". Valid only for Action "Read Job Status".
26	Success	The Job Status is "SUBMITTED". Valid only for Action "Read Job Status".
27	Success	The Job Status is "SUCCEEDED". Valid only for Action "Read Job Status".

Document References

Document Link	Description
Universal Templates	User documentation for creating, working with and understanding Universal Templates and Integrations.
Universal Tasks	User documentation for creating Universal Tasks in the Universal Controller user interface.
AWS Batch	User guide for AWS Batch.
IAM RBAC authorization model	User Documentation for Comparing ABAC to the traditional RBAC model.
AWS Batch API Reference	Reference for the AWS Batch API operations and parameters used by this integration, such as job submission and job description.
IAM Roles Guide	User documentation for creating and configuring the IAM role assumed when Role Based Access is used.

Changelog

ue-aws-batch-2.0.0 (2026-08-04)

Enhancements

• Added: Update boto3 library to increase compatibility.
• Changed: Improved Python compatibility with future Agent versions.
• Changed: Proxy Type is now available regardless of Use Proxy, rather than only when Use Proxy is checked.
• Changed: Proxy CA Bundle File and Proxy Credentials are now shown as soon as Use Proxy is checked, rather than only when a specific Proxy Type is selected.

Deprecations and Breaking Changes

• Breaking Change: Dropped support for Agents with version <= 7.6 and for Python 3.7.

ue-aws-batch-1.3.1 (2024-02-01)

Fixes

• Fixed: Revert certifi as requirement. (#35294)

ue-aws-batch-1.3.0 (2023-12-11)

Enhancements

• Added: Extension Output is enhanced to provide the latest job information coming from the AWS Batch Service. (#33753)

ue-aws-batch-1.2.1 (2023-08-04)

Fixes

• Fixed: Field 'Proxy Type' raised a data validation error on Controller 7.3.0.0 and later. (#34038)

ue-aws-batch-1.2.0 (2022-07-19)

Enhancements

• Added: Support Submit Batch Job and Wait until Job Reaches status "Succeeded" or "Failed (#29278)
• Added: Output fields are updated during execution for the above scenario.
• Added: Log payload response for Read and Submit Job Action on debug mode.

ue-aws-batch-1.1.0 (2022-06-09)

Enhancements

• Added: Provide the capabilty to rely on AWS credentials set-up on the environment where the extension is running and therefore it is not mandatory to be passed on the task definition as input fields. The same applies to AWS Region. (#28286)
• Added: AWS Region can be resolved from environment variables. (#28286)
• Added: Support for "containerOverrides" parameter. (#28860)

ue-aws-batch-1.0.1 (2022-03-14)

Enhancements

• Added: Update of extension icon. (#27753)

Fixes

• Fixed Fix wrong exit code when invalid ARN is provided. (#27736)
• Fixed Fix response message when status is SUCCESS. (#27730)
